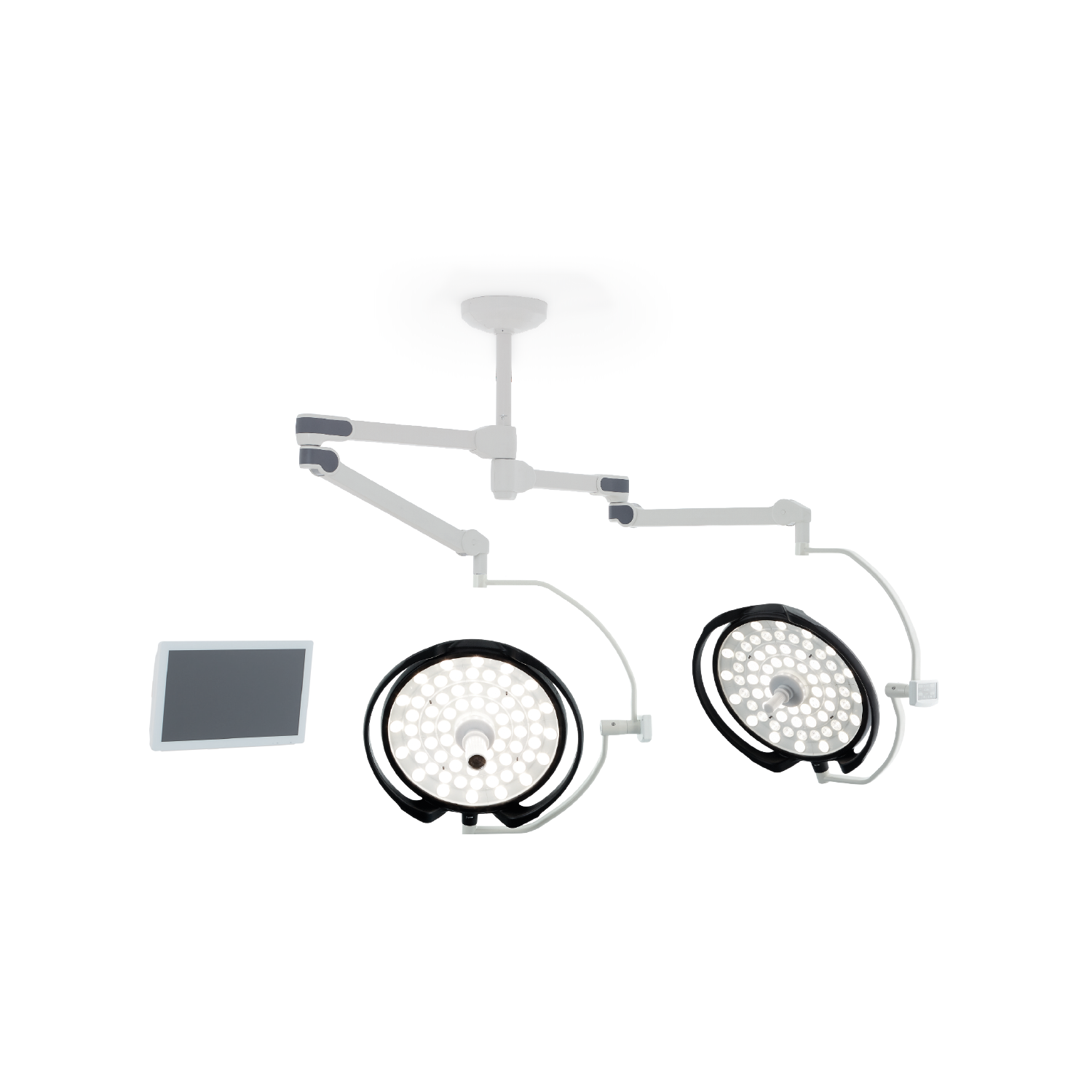

DL-66CMW Operating Room ceiling lamp has 2 heads with 160.000lux light power, SONY HD analog, 1/2.8 type CMOS sensor, 30x optical zoom and autofocus camera, 24” Active Matrix TFT LCD, 1 medical monitor with 1920 x 1200 resolution.
The monitor in the operating room is mounted on the wall. The camera attached to the lamp head is commanded via the control panel and is located in the eyepiece section of the lamp head. The light diameter can be adjusted between 12-30 cm, making it easy to optimize the light diameter for wide or narrow surgical areas. Sensors in the lamp heads close the relevant slice when it detects the surgeon's head, preventing heat build-up on the surgeon's head and shadow formation in the operation area. Thanks to the Endoscopy mode on the control panel, the head can be switched into or out of endoscopy mode with a single touch. In endoscopy mode, the head is not completely switched off, providing a low level of ambient illumination. In addition, the lamp heads have the ability to reach maximum light power with a single button. The aerodynamic structure of the lamps maintains laminar flow thanks to their low resistance heads.
| Özellik Başlığı | Özellik Değeri |
|---|---|
| Max. Luminous power at 1 m | 160.000 lux |
| Head diameter | Ø650 mm |
| Number of titles | 2 |
| Control panel (for each head) | 4.3'' LCD touch panel |
| Head focus diameter | 120 - 300 mm |
| Color temperature | 3500k - 5000k (7 steps) |
| Color discrimination index CRI RA | 96% |
| Light intensity adjustment | 1-100% |
| LED lifetime | 50.000 hours |
| Protection against water and dust | IP 54 |
| Camera | 1080p Full HD Camera |
| Monitor | 22'' medical monitor |
| Irradiation level / Illuminance level | Ee/Ec= 3.21 mW/m2.lx |
| Head light depth | 120 cm |
| Header total consumption | 85 W |
| Endoscopy mode | Yes |
| Laminar flow harmony | Yes |
The light diameter in the lamp head can be adjusted between 12-30 cm. This allows the light diameter to be easily optimized for wide or narrow surgical fields.
