Üzümcü is a global supplier of medical technologies for our partners all around the world with our high quality innovative products. Over half-century experience in medical field and a dynamic team, we have been involved in many projects in more than 100 countries. .
LED technology does not cause heat increase in both the surgical site and the surgeon's head.

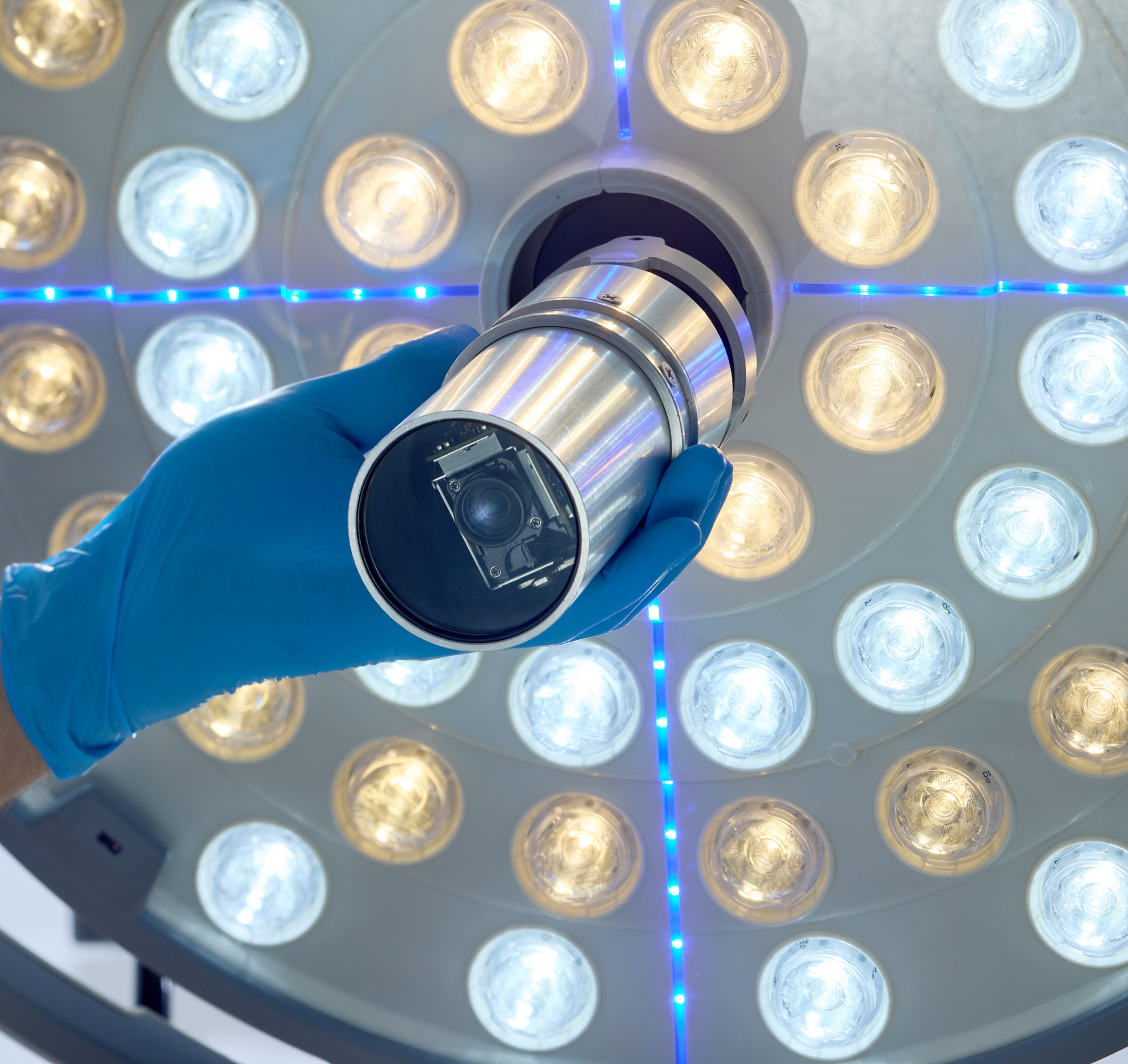

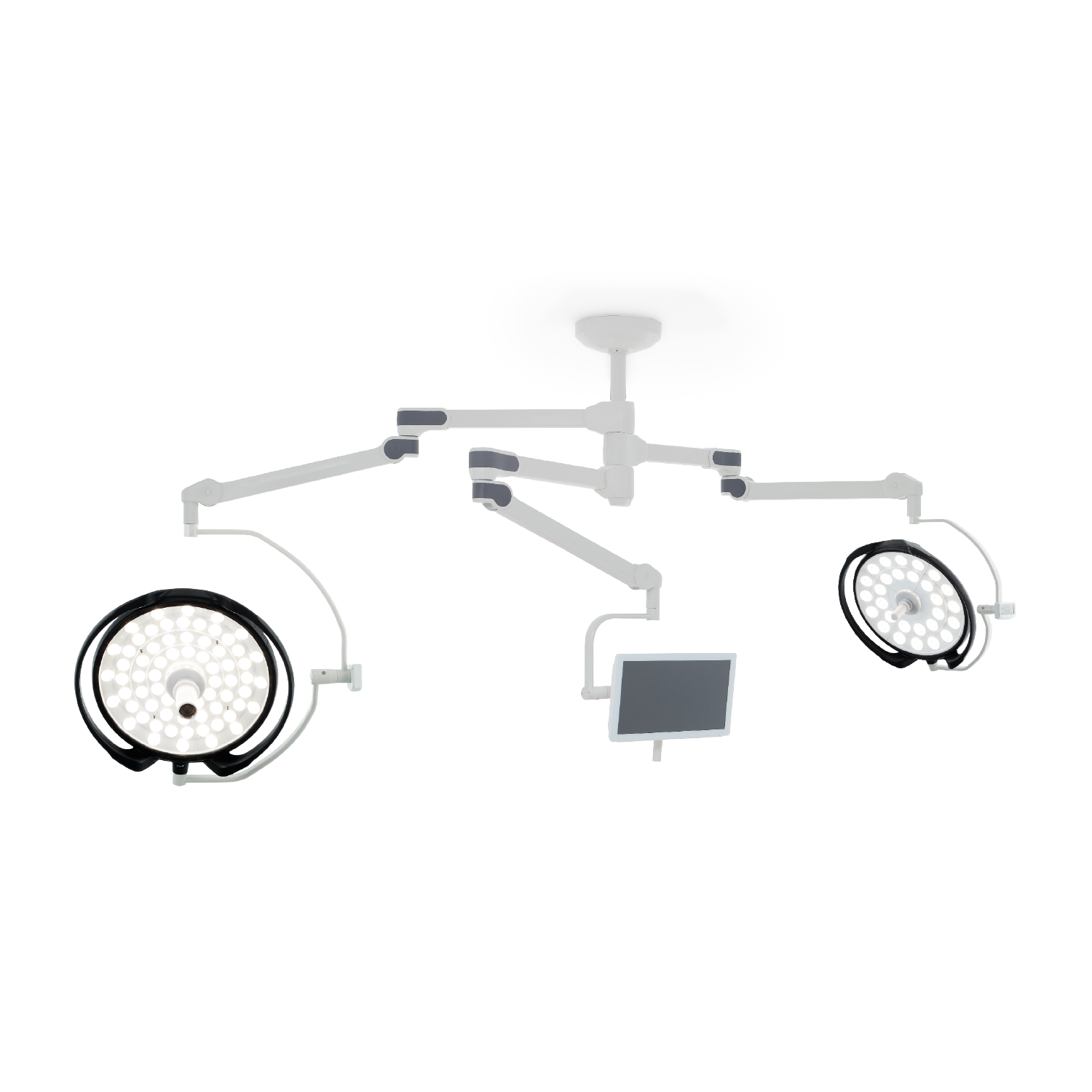

During the operation, the camera located in the center of the light transfers the image to the monitor and allows other people to watch the operation. The camera attached to the light head is commanded via the control panel. The monitor, which is mounted on the lamp arm, has the ability to move and make positioning. LED technology does not cause temperature increase in both the surgical area and the surgeon's head. The life of the led bulbs used in these light heads, which can produce 160,000 lux and 120,000 lux power, is 60,000 hours. There are 68 LEDs in the main head part and 28 LEDs in the satellite head part.
| Özellik Başlığı | Özellik Değeri |
|---|---|
| Max. Illumination power at 1 m (Main heading) | 160.000 lux |
| Max. Luminous power at 1 m (Satellite head) | 120.000 lux |
| Main head diameter | Ø650 mm |
| Satellite head diameter | Ø440 mm |
| Number of light heads | 2 |
| Control panel (for each light head) | 4.3'' LCD touch panel |
| Main head focus diameter | 120 - 300 mm |
| Satellite head focus diameter | 150 mm |
| Color temperature | 3500k - 5000k (7 steps) |
| Color discrimination index CRI RA | 96% |
| Light intensity adjustment | 1-100% |
| Parent topic Number of LED modules | 68 |
| Number of satellite head LED modules | 28 |
| LED lifetime | 60.000 hours |
| Protection against water and dust | IP 54 |
| Camera | 1080p Full HD Camera |
| Monitor | 22'' medical monitor |
| Irradiation level / Illuminance level | Ee/Ec= 3.21 mW/m2.lx |
| Main title light depth | 120 cm |
| Satellite head light depth | 100 cm |
| Main topic total consumption | 85 W |
| Satellite head total consumption | 55 W |
| Endoscopy mode | Yes |
| Laminar flow harmony | Yes |
DL-62CM Operating room ceiling lamp uses SONY HD analog, 1/2.8 type CMOS sensor, 30x optical zoom and autofocus camera
